A heavy duty modular interlocking tile system, offering exceptional durability. It is flexible, robust and effective – combining all the key features of a successful Entrance Matting system at affordable pricing, without compromising on aesthetics.
INTRAlink
Typical Application
High Traffic locations such as Public Buildings, Commercial Offices, Shopping Centres etc
INTRAlink Features
- Interlocking Tile format – versatile and easy to install
- Exceptional durability and effectiveness
- Suitable for Internal and External applications
- Heel-proof open construction for effective dirt removal
- Fully Rollable for ease of cleaning and maintenance
- Quality Polyamide Fibre for optimum moisture absorption

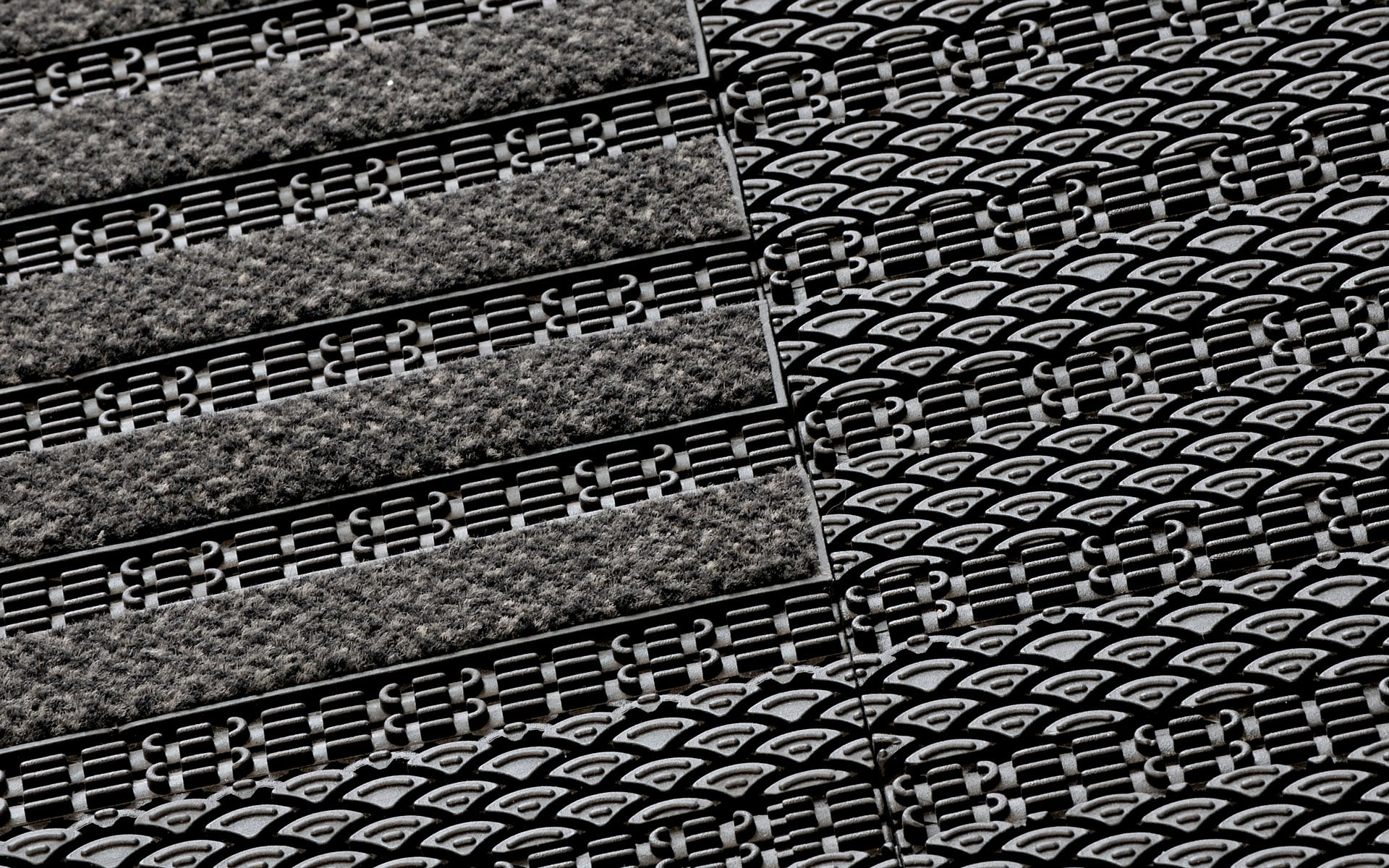

- Plain tile version for external applications or border tile
- Compatible with electronic tagging systems
- Dimensionally Stable
- Highly successful at high traffic areas such as Schools & Colleges, Shopping Centres, Stations etc.
Zone 1 inserts
Zone 1 inserts
| Product Reference | INTRAlink Heavy Duty PVC Grid Entrance Matting INTRAlink Plain Heavy Duty PVC Grid Entrance Matting |
| Strength Rating | High – suitable for areas with heavy foot and wheeled traffic |
| Zonal Location | High Traffic environments Zone 2 Interior area – with high quality polyamide fibre inserts Zone 1 Exterior area – Plain tile version |
| Construction | Heel-proof Open Construction Interlocking Tile Format – Tile size 395mm x 135mm UV resistant, hardwearing and elastic PVC – with polyamide fibre inserts |
| Typical Application | High Traffic locations such as Public Buildings, Commercial Offices, Shopping Centres etc |
| Design Options | Basic range of design options Packaged in cases of 20 tiles (1.06m2) for ease of delivery and fitting |
| Weight | 12.7kg/m2 |
| Matwell Framing | INT019 |
| Slip Rating | Will vary with insert, in excess of PTV 38 |
| Warranty | 5 years |
| Fire Rating | EN13501: Bfl-s1 |
Profile
Intralink
| A | 19mm |
| B | 16mm |
| C | 135mm tile module |
Intralink Plain
| A | 19mm |
| B | 15mm |
| C | 135mm tile module |
| 1 | Finished Floor surface |
| 2 | Recessed matwell frame |
| 3 | Levelling latex to matwell base |
| 4 | Screed sub-floor |
| 5 | Screw fixings |
