Available in a variety of materials and bespoke finishes to meet your exacting specifications. for interior and exterior applications.

Request Free Sample

INTRAgrille T5050/R Features

  • Suitable for interior and exterior applications
  • Striking linear aesthetic with no visible seams

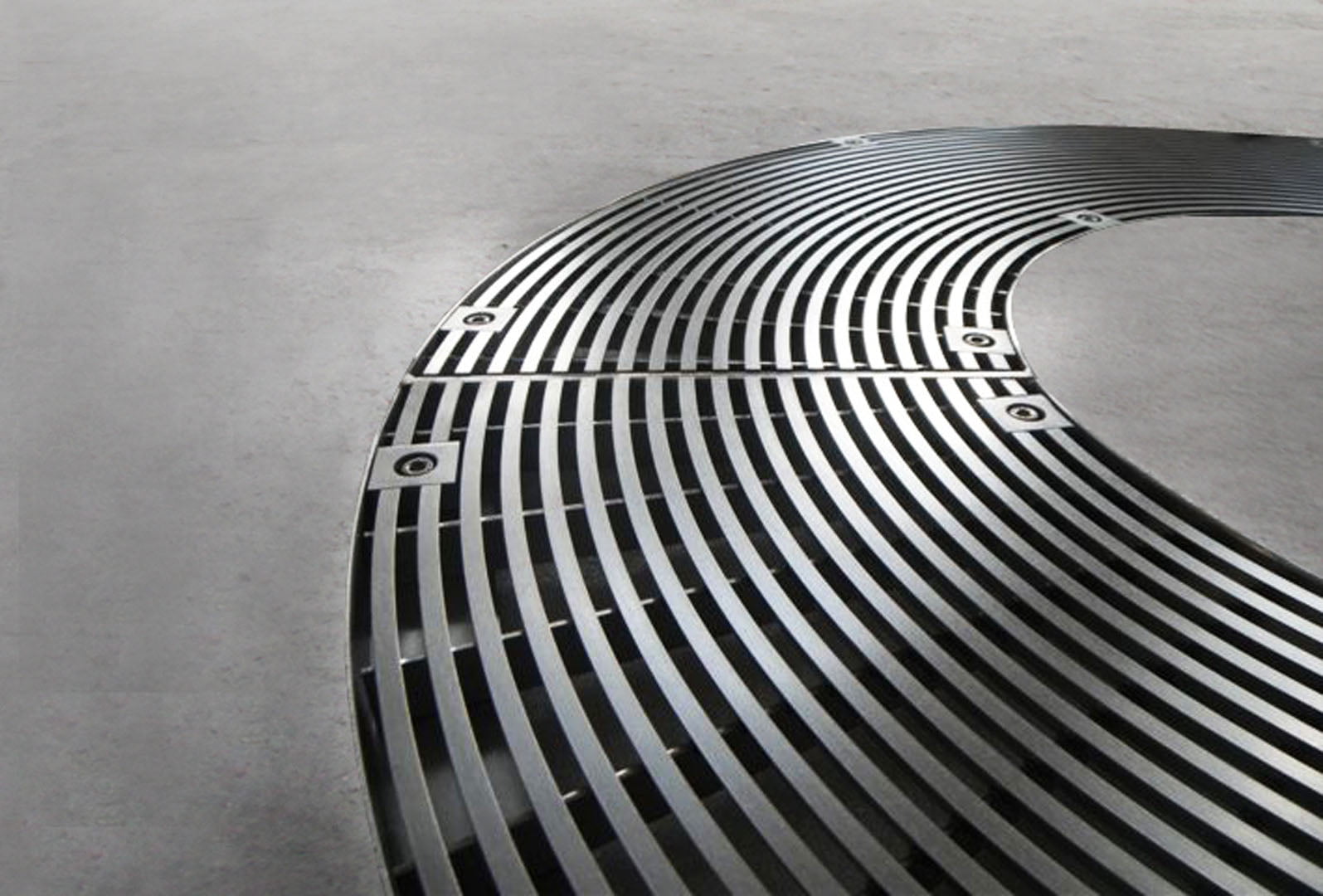

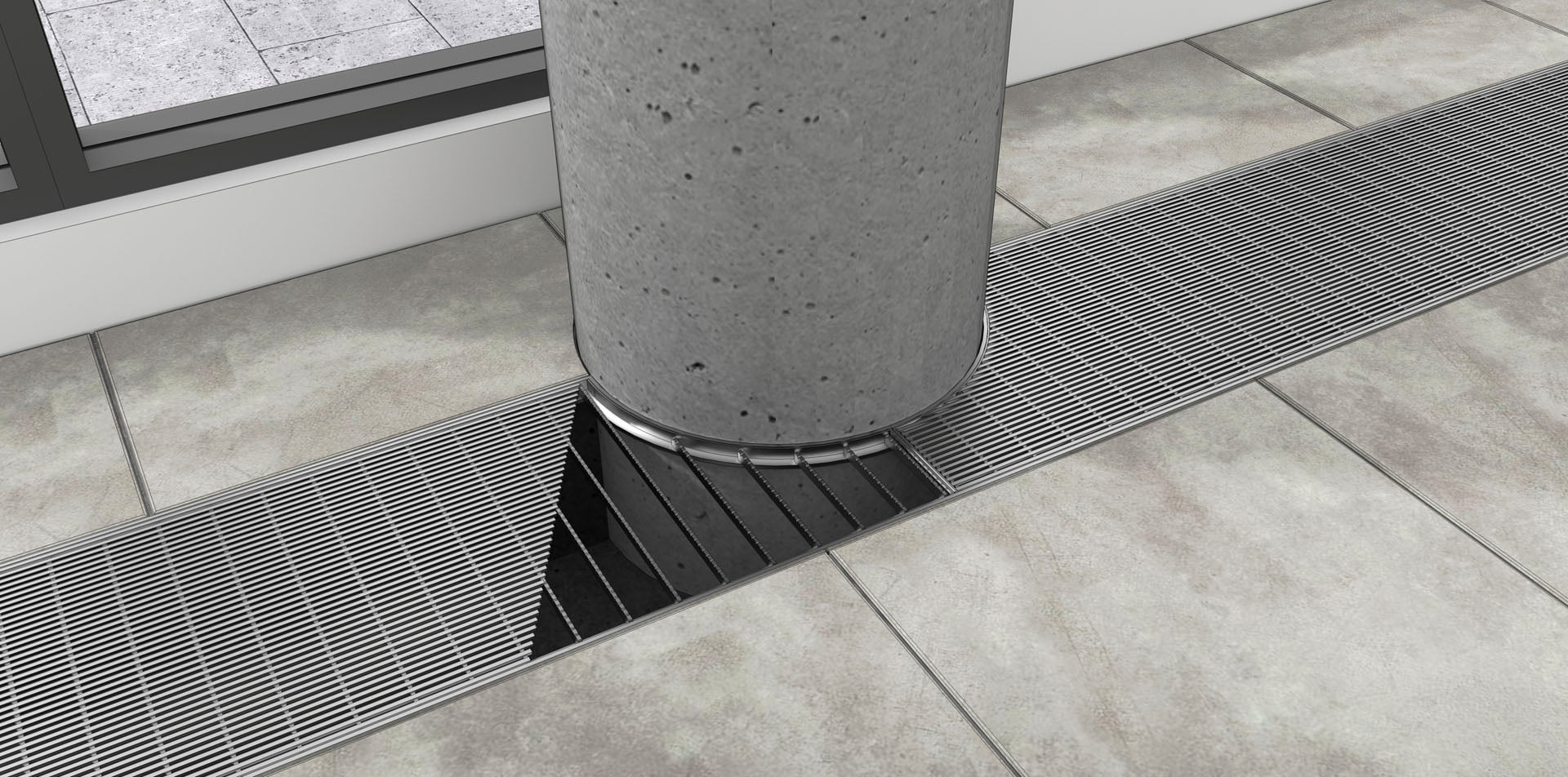

  • Can be cut and shaped to nearly any shape and format
  • Available in stainless steel 304, 316 and carbon steel
  • 100% recyclable and sustainable material
  • Drainage options available
  • Recommended for trench covers, entrance grilles, ventilation and drainage
  • Adjust profile and support spacing to achieve appropriate load-bearing, airflow and screening
  • Can be pickled and passivated, electropolished, powder coated to any standard RAL colour or shot-peened (shot peening applies to stainless steel only)

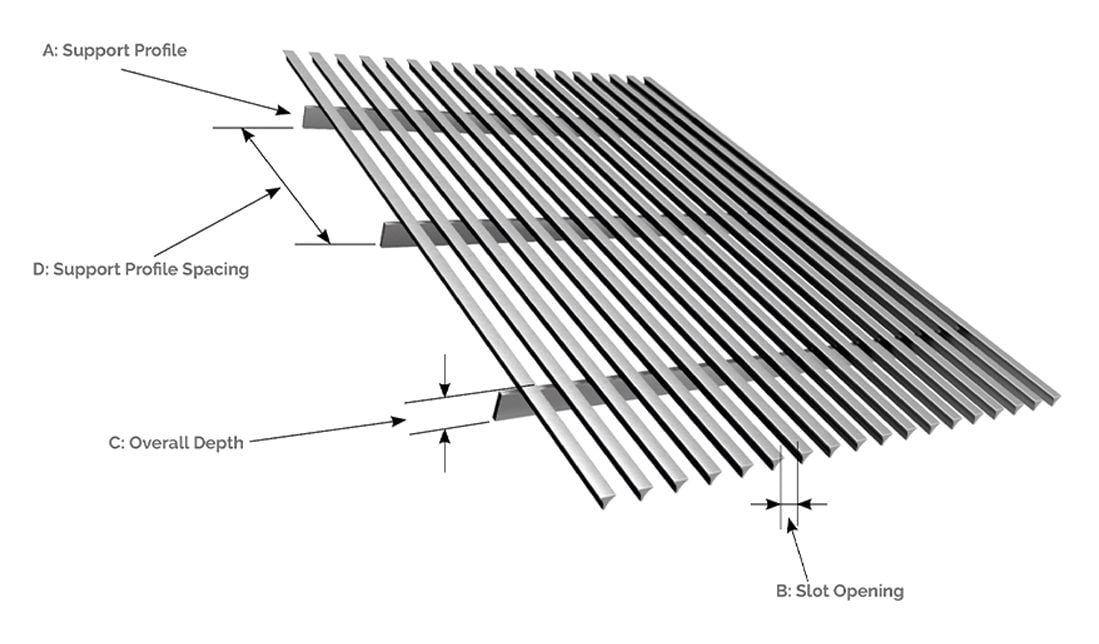

Profile T5050/R



A Support Profile 10 x 2 10 x 2 20 x 2
Material Stainless steel Carbon steel Carbon steel
B Slot Opening 4mm 4mm 4mm
C Overall Depth 13.5mm 13.5mm 23.5mm
D Support Profile Spacing 50mm 50mm 50mm
Weight kg/m²* 14.0 13.8 16.9
Typical max span** 300mm 300mm 650mm

* Based on 4mm slot opening
** For heavy pedestrian traffic

Specification

Product Reference INTRAgrille T5050/R
Support Profile 10×2, 20×2
Support Profile spacing 50mm (other options available)
Slot Opening >4mm constant, alternating or increasing
Open Area 44% based on 3mm slot opening
Finish Options Pickled & Passivated, Electropolished, Powder Coated, Shot Peened – N/A to carbon steel

Finishes

493
T5050/R Standard

Typical Specification:

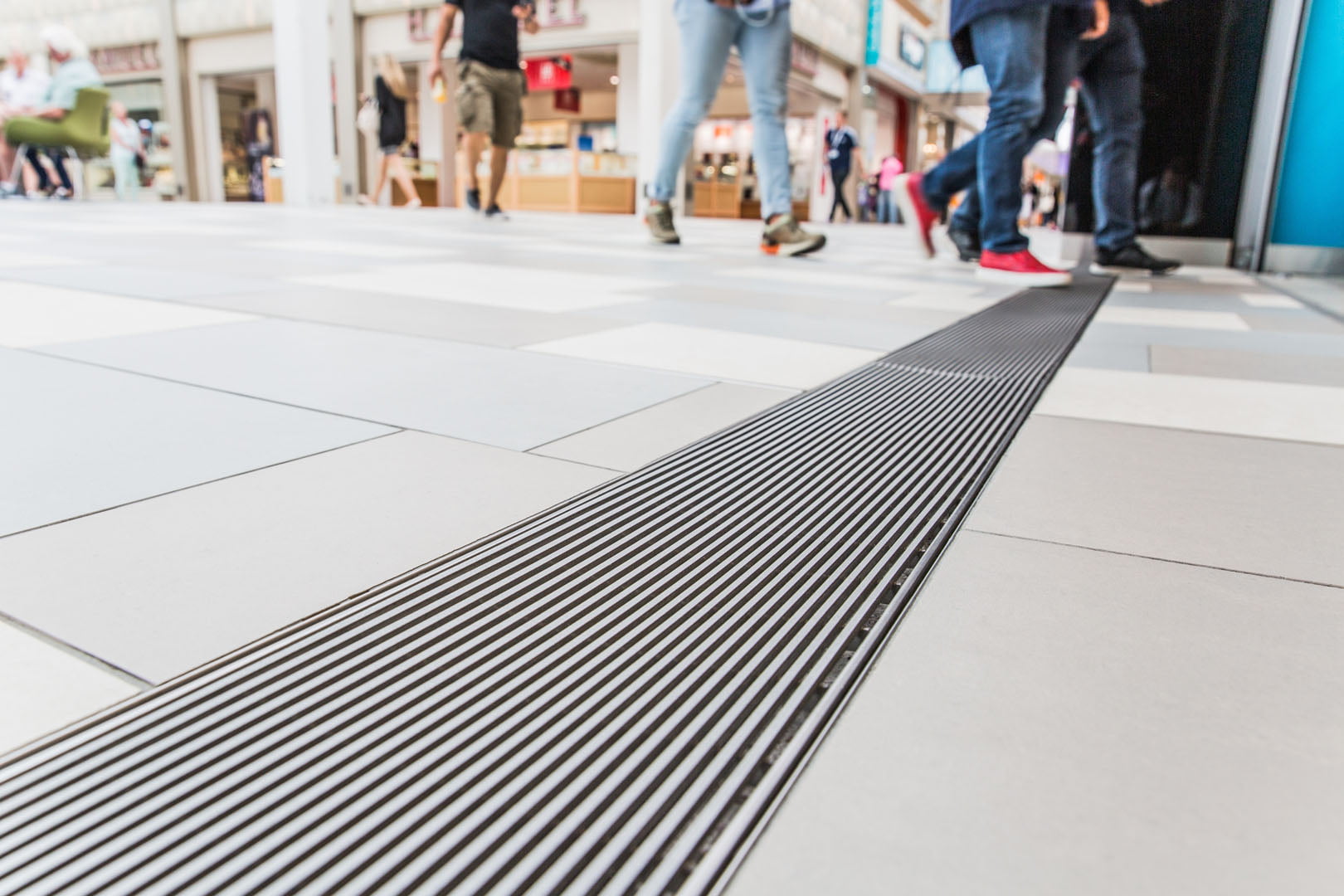

Trench heating covers
Service trench covers
Architectural features

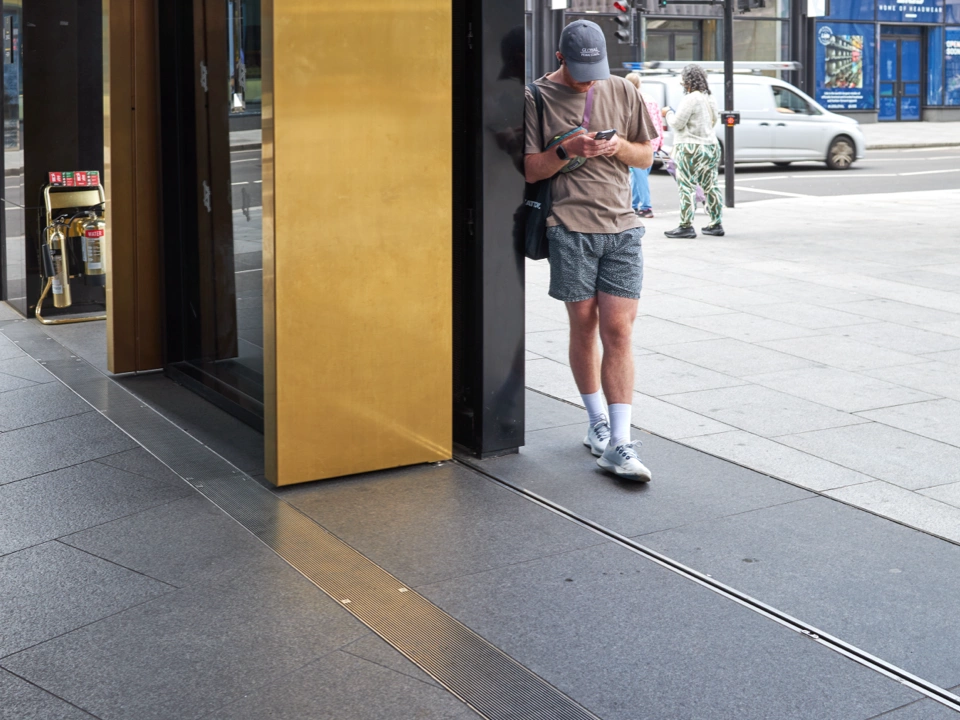

Entrance grilles
Ventilation
Drainage

Manufacturer:

14 Headlands Business Park, Salisbury Road Blashford, Ringwood BH24 3PB
T: +44(0)1425 472000 F: +44(0)1425 481981
E: info@intrasystems.co.uk

Product Reference:

INTRAgrille T5050/R
Architectural Grilles

Product Description:

INTRAgrille is available in a wide range of combinations, with a choice of materials and bespoke finishes to meet your exacting specifications.
