Available in both 304 and 316 grades of stainless steel and a choice of bespoke finishes for interior and exterior applications.

Request Free Sample

INTRAgrille T2850 Features

  • Suitable for interior and exterior applications
  • Striking linear aesthetic with no visible seams
  • Can be cut and shaped to nearly any shape and format
  • Adjust both profile and support spacing to achieve appropriate load bearing, airflow and screening
  • Can be pickled and passivated, electroplated, powder coated to any standard RAL colour or shot peened
  • 100% recyclable and sustainable material
  • Drainage options available

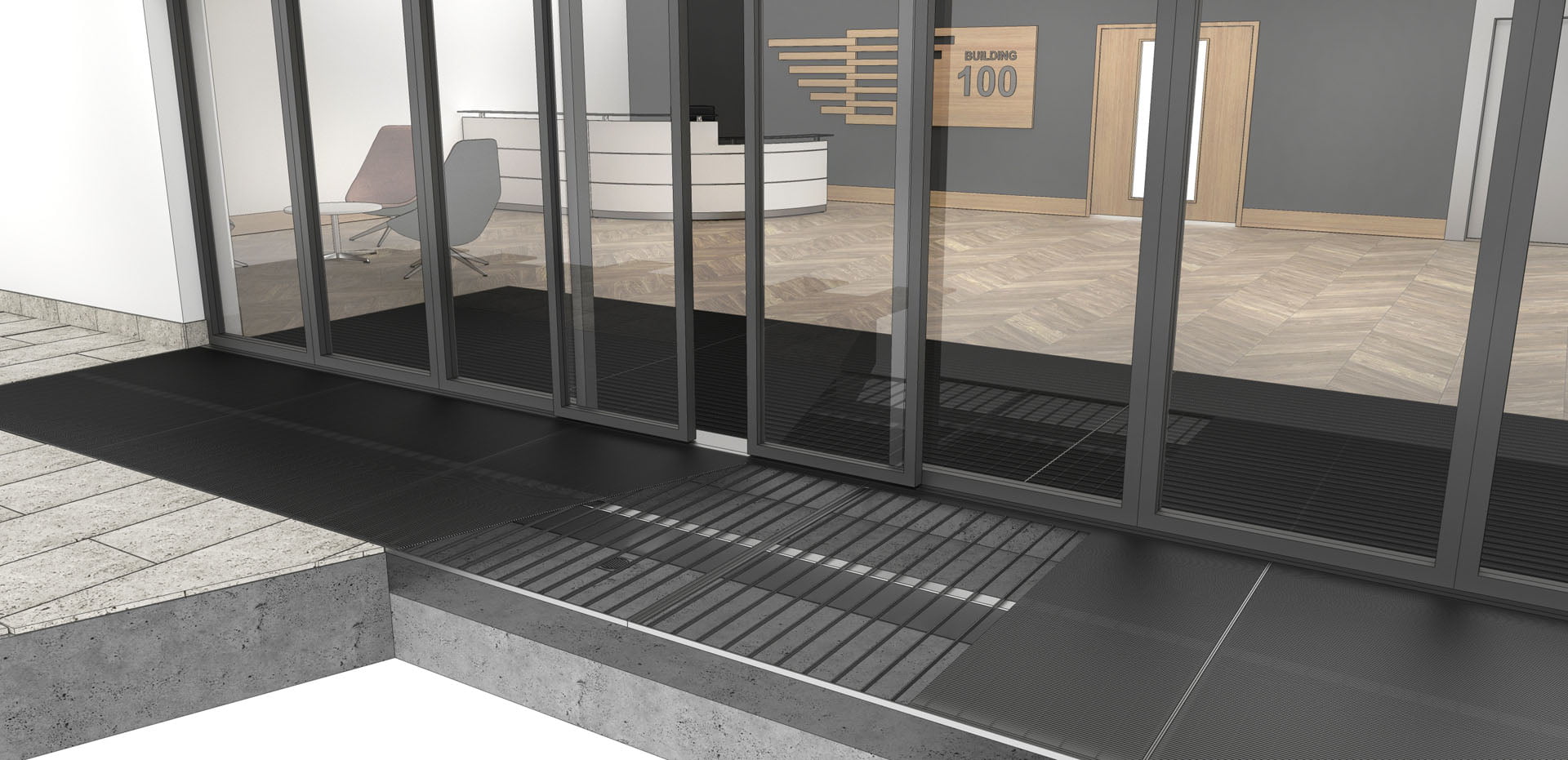

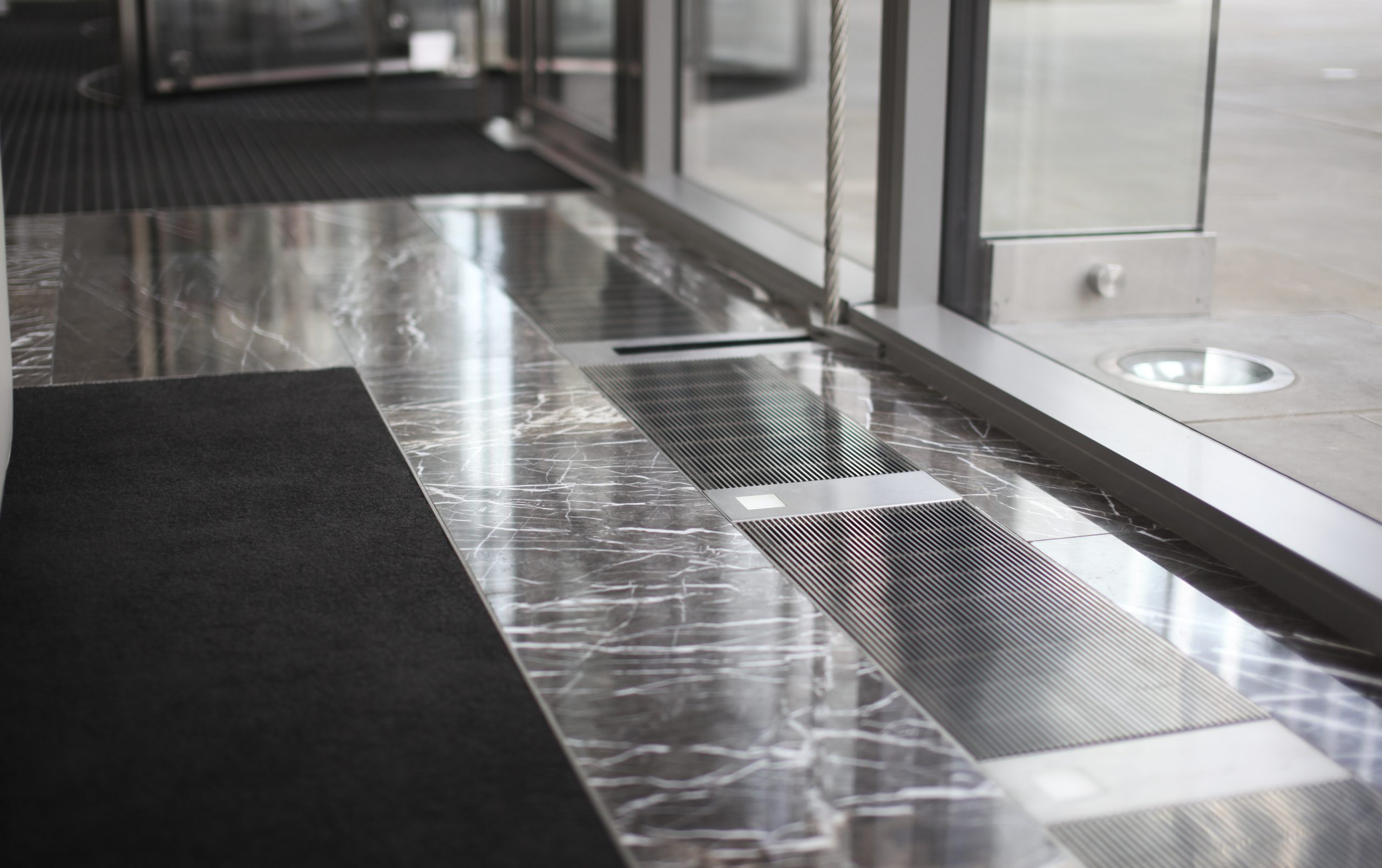

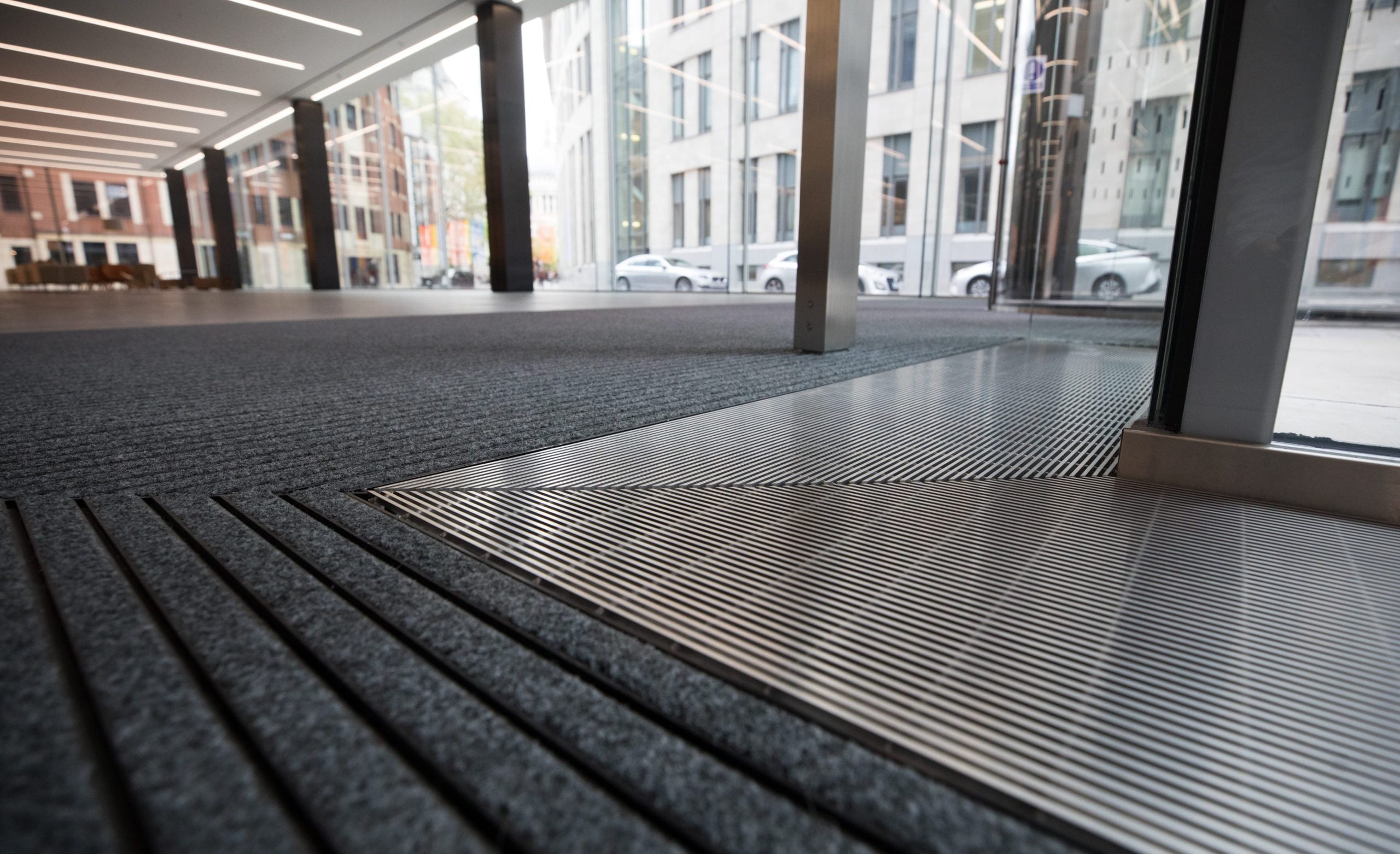

  • Recommended for trench covers, facades and solar shading, balustrades and soffits, entrance grilles and ventilation

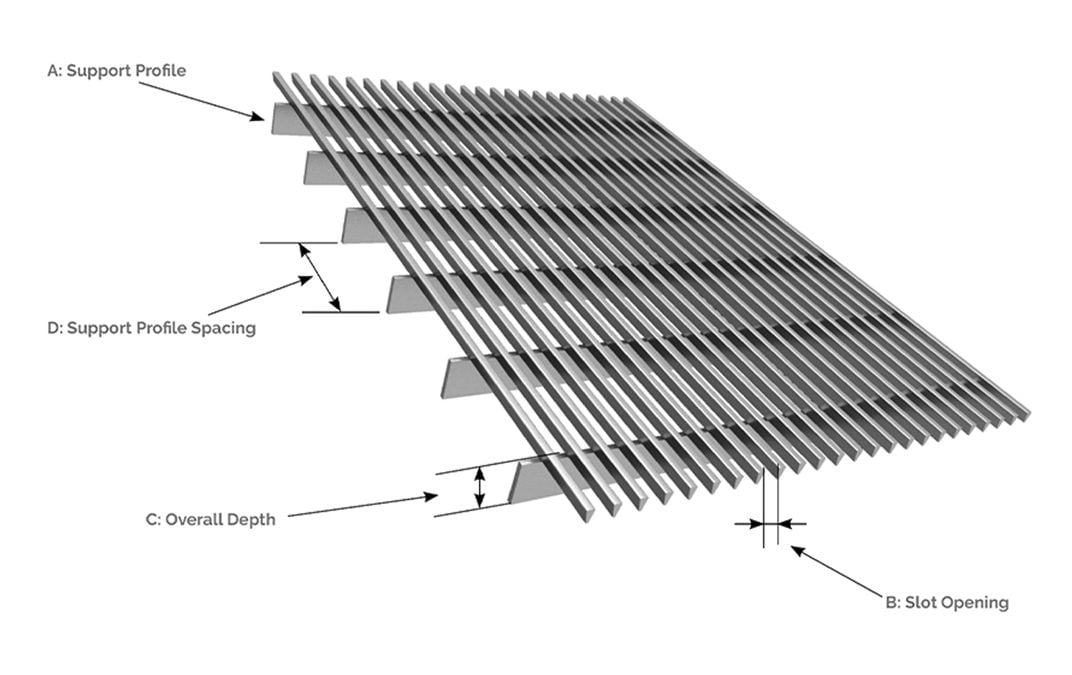

Profile T2850



​

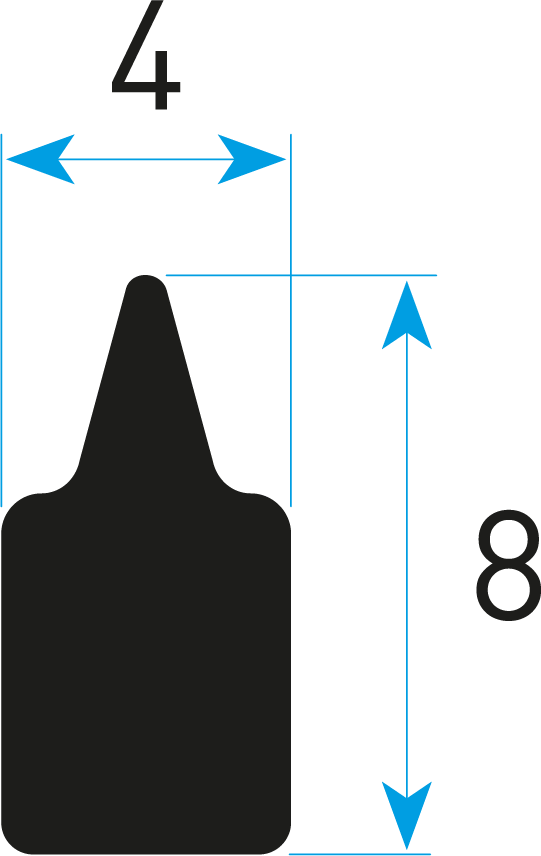

A Support Profile 5 x 3 8 x 4 10 x 2 15 x 2
Material Stainless steel Stainless steel Stainless steel Stainless steel
B Slot Opening 3mm 3mm 3mm 3mm
C Overall Depth 7.5mm 11.5mm 13.5mm 18.5mm
D Support Profile Spacing 50mm 50mm 50mm 50mm
Weight kg/m²* 14.9 16.8 16.2 17.8
Typical max span** n/a n/a 300mm 500mm

* Based on 3mm slot opening
** For heavy pedestrian traffic

Specification

Product Reference INTRAgrille T2850
Support Profile 5×3, 8×4, 10×2, 15×2
Support Profile spacing 50mm (other options available)
Slot Opening >3mm constant, alternating or increasing
Open Area 52% based on 3mm slot opening
Finish Options Pickled & Passivated, Electropolished, Powder Coated, Shot Peened

Finishes

491
T2850 Standard

Typical Specification:

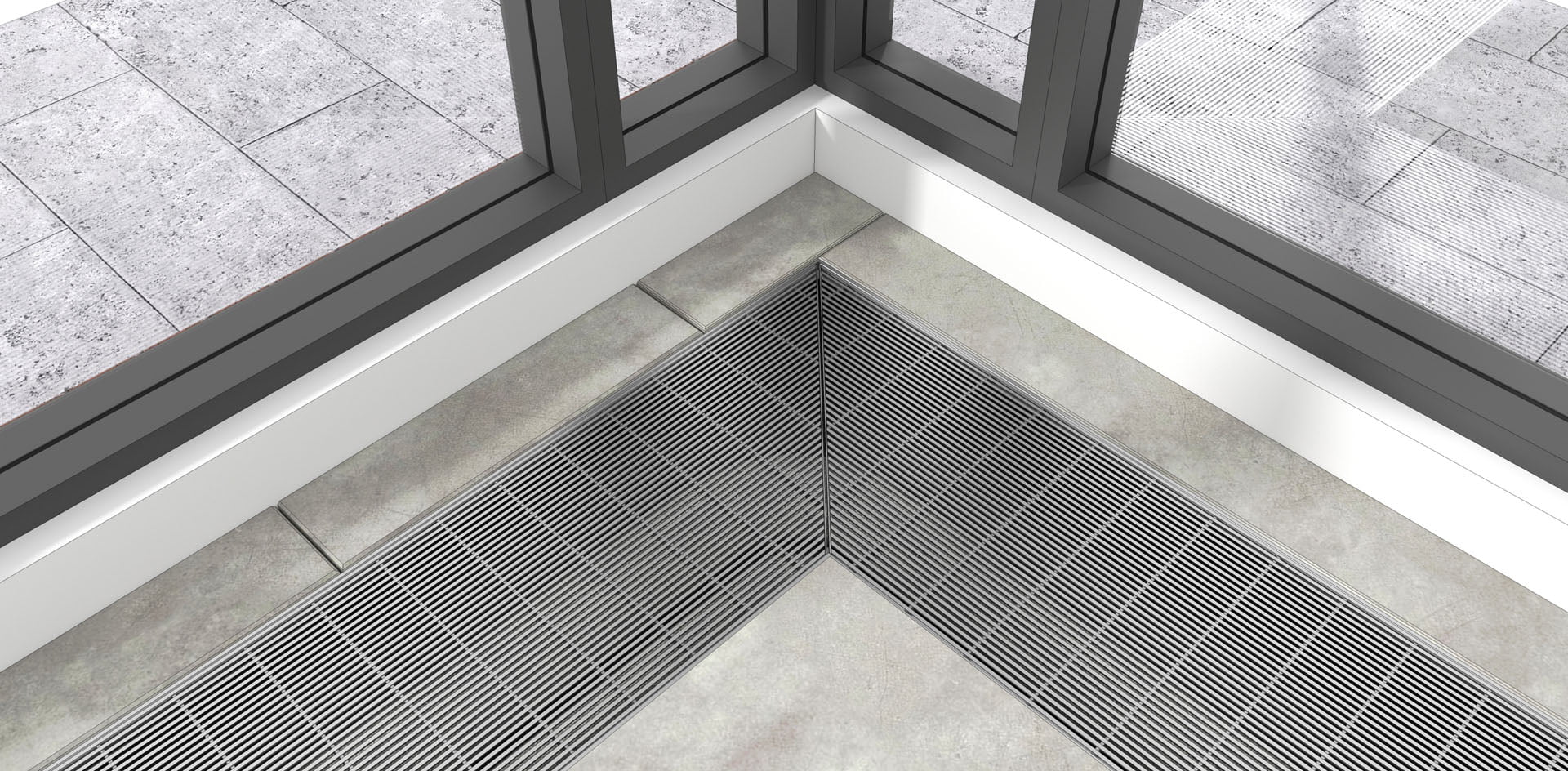

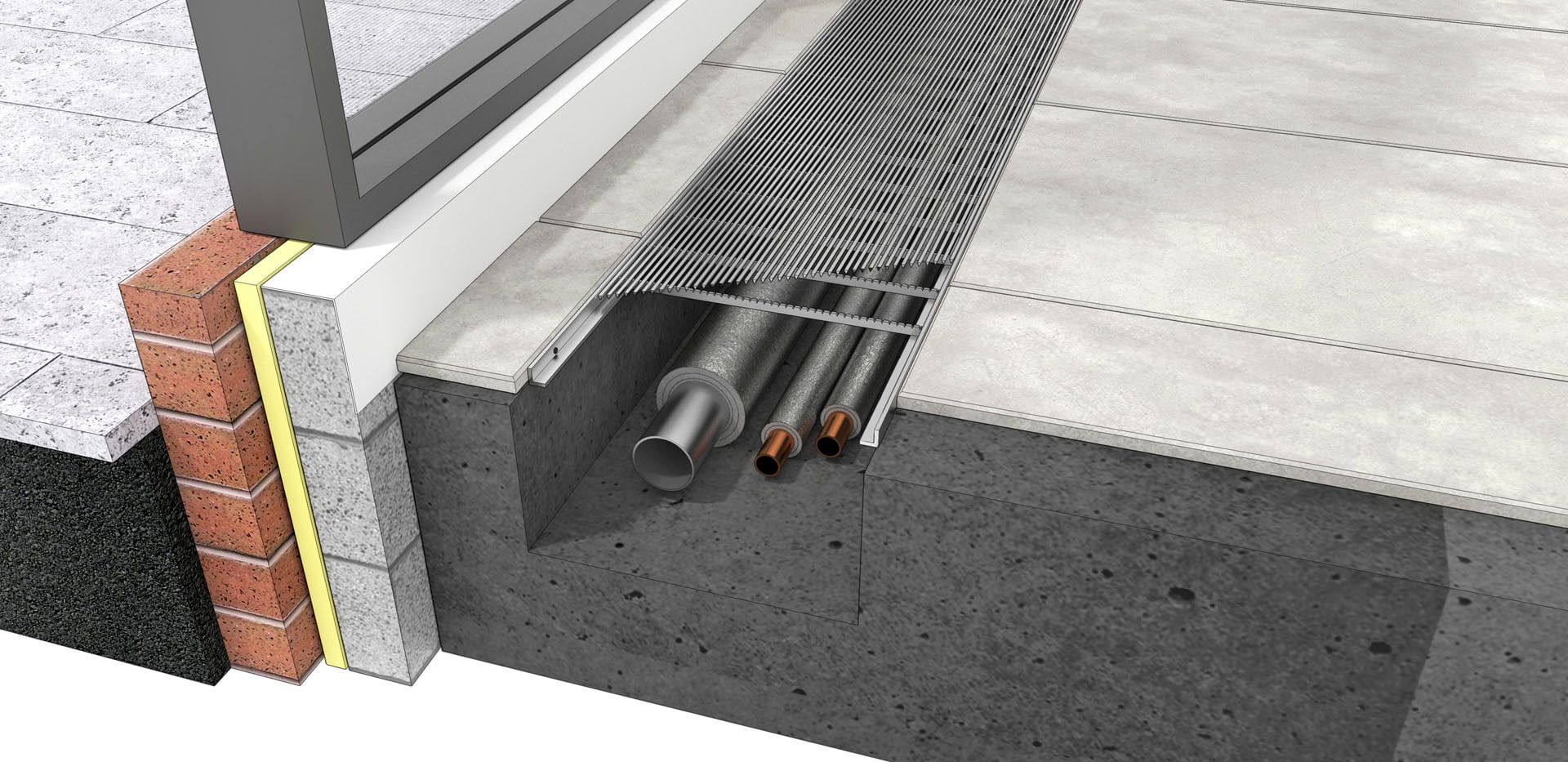

Trench heating covers
Service trench covers
Architectural features
Facades & solar shading
Balustrades & soffits
Entrance grilles
Ventilation

Manufacturer:

14 Headlands Business Park, Salisbury Road Blashford, Ringwood BH24 3PB
T: +44(0)1425 472000 F: +44(0)1425 481981
E: info@intrasystems.co.uk

Product Reference:

INTRAgrille T2850
Architectural Grilles

Product Description:

INTRAgrille is available in a wide range of combinations, with a choice of materials and bespoke finishes to meet your exacting specifications.
