INTRAform FR

Heavy duty aluminium Entrance Matting with specialist fire-resistant and low toxic smoke emission multi-directional inserts (Section 12 compliant). Designed for high risk areas such as underground stations.

Typical Application

Designed for high-risk areas such as underground stations. Suitable for high traffic environments, including those with heavy foot and wheeled traffic.

  • 10 Year Warranty
  • EPD Available
  • Closed or Open Construction
  • Extreme Strength Rating

INTRAform FR Features

  • Approved for use in Underground Stations
  • Heavy-duty aluminium plank system
  • Designed for areas where fire safety is critical
  • Tested to EN45545 – the European railway standard for fire safety
  • Suitable for extreme traffic areas, offering exceptional durability
  • Multi-directional inserts for optimum performance
  • 100% recycled aluminium construction

Zone 1 inserts

  • Double Module

Product ReferenceINTRAform FR Heavy Duty Entrance Matting
Strength RatingExtreme – suitable for areas with heavy foot and wheeled traffic
Zonal LocationHigh Traffic environments External Zone 1 Application – FR insert Internal Zone 2 Application – FR insert
Construction100% recycled aluminium construction Open drainable/closed construction. Interlocking plank system
Typical ApplicationHigh Traffic locations such as Public Buildings, Commercial Offices, travel termini, Shopping Centres etc
Design OptionsBasic range of design options but can be anodised to special order
Weight19.6kg/m2
Matwell FramingINT019
Slip RatingWill vary with insert, in excess of PTV 38
Warranty15 years
Sustainability100% recycled aluminium plank. All inserts recyclable/re-usable 100% Econyl Fibre (Elite, Ultimate & Select)

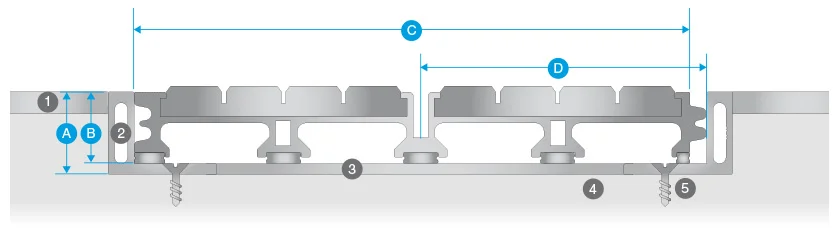

A19mm
B16.5mm
C132.8mm Plank
D66.4mm Module
1Finished floor surface
2Recessed matwell frame
3Levelling latex to matwell base
4Screed sub-floor
5Screw fixings
